ISO17025 Calibrated Test Finger Probe Kits Test IEC61032 Test Probe B Test Probe 12 Test Probe 13 Test Probe 41
The IEC61032 test probe b, test probe 12, test probe 13 and test probe 41 are designed according to IEC61032 standard. All the probes are made of nylon and steel and can be with a third-lab calibration certificate authorized by ISO17025 lab.
1. Introduction of IEC61032 Test Probe B:
Jointed test finger (test probe B) is consisted dactylogryposis and handle, the dactylogrypossis has two active joints that can bend in 90 degrees and made by insulating material, the handle can customized with terminals or M6 threaded hole to work with force gauge. Jointed test finger is to protection of person’s finger from hazard parts (Live parts or mechanical parts) of enclosure according to the standards of IEC61032 figure 2, IEC60529 and IEC60065.
2. Specification of IEC61032 Test Probe B:
| Model | PG-TPB | PG-TPB-1 | PG-TPB-2 |
| Jointed point size 1 | 30±0.2 | 30±0.2 | 30±0.2 |
| Jointed point size 2 | 60±0.2 | 60±0.2 | 60±0.2 |
| Length of finger | 80±0.2 | 80±0.2 | 100±0.2 |
| Fingertip to baffle size | 180±0.2 | 180±0.2 | - |
| Fingertip taper fillet | S4±0.05 | S4±0.05 | S4±0.05 |
| Diameter of finger | Ф12 0 -0.05 | Ф12 0 -0.05 | Ф12 0 -0.05 |
| Diameter of baffle | Ф75±0.2 | Ф75±0.2 | Ф125±0.2 |
| Thickness of baffle | 5±0.5 | 5±0.5 | - |
| A-A section diameter | Ф50 | Ф50 | - |
| A-A section width | Ф20±0.2 | - | - |
| Thruster | 10N optional | 10N optional | 10N optional |
| Standard | IEC61032 | IEC60335-1 | IEC60335-2-14 |
3. Introduction of IEC61032 Test Probe 12
The IEC61032 Test Probe 12 is designed according to IEC61032 figure 8. This pin is intended to be used on appliances for verifying the inaccessibility of hazardous live parts or hazardous mechanical parts which are liable to be touched accidentally by a tool, for example a screwdriver or similar pointed object in normal use.
4. Specification of IEC61032 Test Probe 12
| Diameter of test pin | 4mm |
| Length of test pin | 25mm |
| Diameter of stope face | 25mm |
| Thickness of stope face | 4mm |
| Material | Insulating material (handle), metal (test probe) |
5. Introduction of IEC61032 Test Probe 13
The IEC61032 Test Probe 13 is designed according to IEC61032 figure 9. The pin is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment (see IEC60536)
6. Specification of IEC61032 Test Probe 13
| Diameter of test pin | head 3mm, bottom 4mm |
| Length of test pin | 15mm |
| Diameter of baffle | 25mm |
| Thickness of baffle | 4mm |
| Material | insulating material, metal |
7. Introduction of IEC61032 Test Probe 41

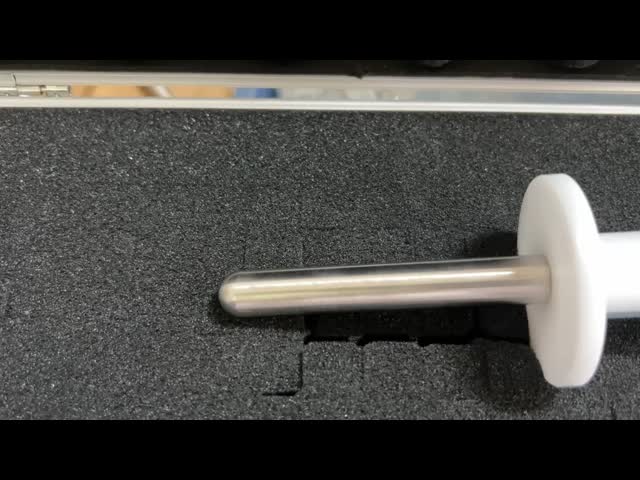

The IEC61032 Test Probe 41 is designed according to IEC61032 figure 16, and meet the requirements of IEC60065. This bar is intended to verify the protection of fixed and portable visibly glowing radiant heaters.
8. Specification of IEC61032 Test Probe 41
| Diameter of probe | 30mm |
| Length of probe | 80mm |
| Diameter of handle | 50mm |
| Length of handle | 80mm |
| Material | insulating material (handle), probe (metal) |
