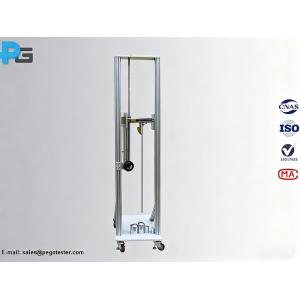

IK pendulum hammer is a professional tool designed according to IEC60068-2-75 test Eha for mechanical impact tests, it can perform the IK01 to IK11 tests as per IEC62262. The pendulum hammer can only be used on vertical surfaces without overhangings. The test apparatus consists basically of a pendulum rotating at its upper end in such a way as to kept in a vertical plane. The axis of the pivot is at 1000mm above the measuring point. The pendulum hammer is composed of a nominally rigid arm and a striking element.
|
Swing Pipe |
Steel pipe 1 (Length: 1000mm, outer diameter: 15.9mm, thickness: 1.5mm) for energies exceeding 2J Steel pipe 2 (Length: 1000mm, outer diameter: 9.0mm, thickness: 0.5mm) for energies not exceeding 2J |
|
Impact angle |
0~900 |
|
Lifting stroke |
200-1200mm |
|
Impact hammers |
Striking elements: ≤1J for IK01 to IK06 tests, made by nylon Striking elements: 2J for IK07 test, 5J for IK08 test, 10J for IK09 test, 20J for IK10 test, made by steel |
|
Equivalent mass of hammers |
≤1J: 0.2KG, IK07: 0.5KG, IK08: 1.7KG, IK09: 5KG, IK10: 5KG, IK11: 10KG |
|
Hammer release method |
Manual release |
|
Mounting Fixtures |
1). Completed designed according to IEC60068-2-75 figure D.3, applied for IK01 to IK06 tests 2). Flat mounting plate for IK07 to IK10 tests, adjustable angle 0-90°, equipped with M6 screw holes |
1). The pendulum impact test apparatus can customize the travel height (regular height 200-1200mm) to fit with different height of impact points.
2). The test apparatus equip with a rigid plane support to place or mount small specimens. For testing heavy, voluminous or difficult-to-handle specimens, the specimen can be placed on ground directly.
3). User can perform IK01 to IK11 tests in one test apparatus.
The vertical hammer is designed according to IEC60068-2-75 and GB2423.55. It is applied to test the mechanical impact strength of plug, socket-outlet, mounting box, luminaire, substation cabinet, household appliance, EVCS and etc., which can meet the test requirements of IEC60884-1, IEC60598-1, IEC62196-1 and etc..
